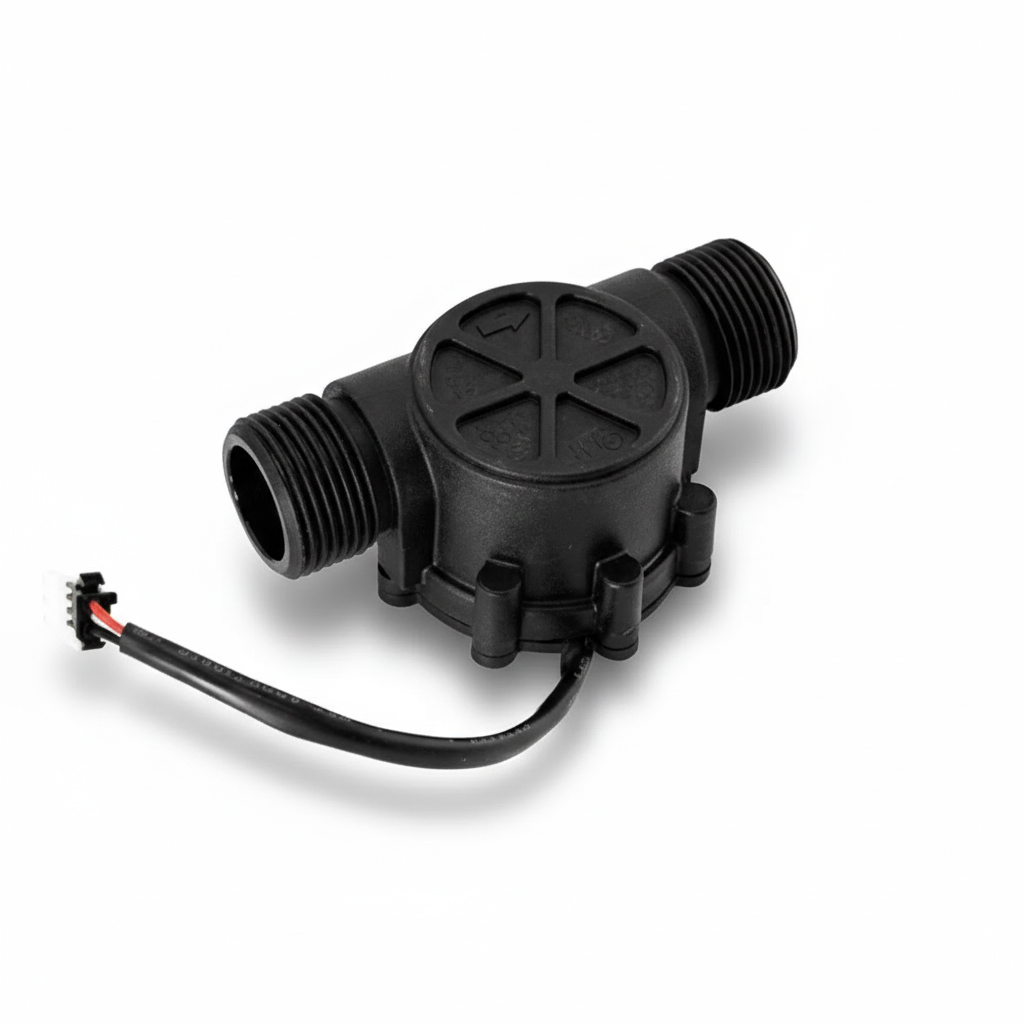

1" flow sensor
₹
Availability: In Stock
Key Features:
Compact, Easy to Install
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant
Specifications:
Mini. Working Voltage: DC 4.5V
Working Voltage: DC 5V~24V
Flow Rate Range: 1~100L/min
Water pressure resistance: ≤ 1.75MPa
Operating Temperature: = -20~85C
Insulation resistance: = >100MΩ
Characteristics of Flow pulse: f=(4.8*Q) where Q=L/Min
Accuracy: ±3%

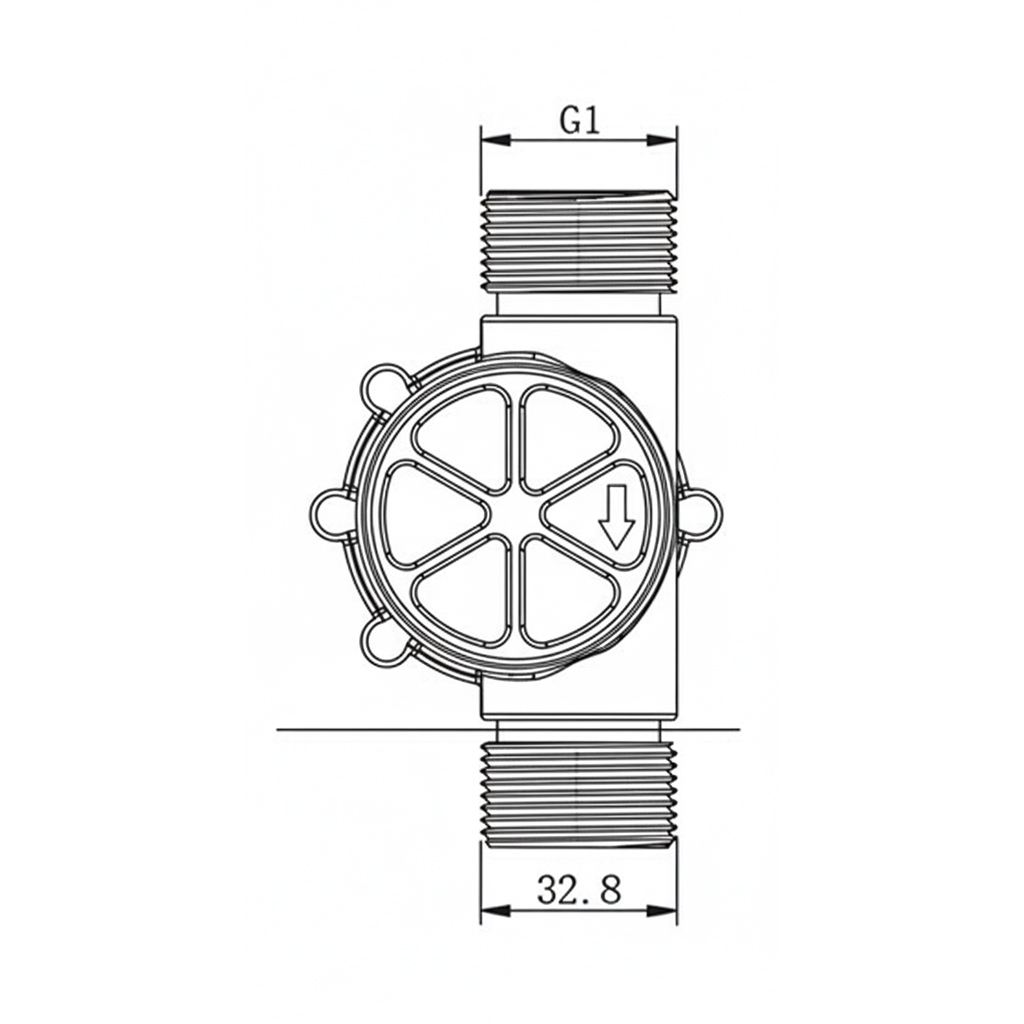

Connector type: G1
Low temperature test : After placing at -20 ° C for 72h, place at room
temperature for 1h, the accuracy is within ± 5% of the first measured value.
High temperature test : After standing at 85 ° C for 72 h, place at room temperature for 1h, the accuracy is within ± 3% of the first measured value.
Working Voltage: DC 5V~24V
Flow Rate Range: 1~100L/min
Water pressure resistance: ≤ 1.75MPa
Operating Temperature: = -20~85C
Insulation resistance: = >100MΩ
Characteristics of Flow pulse: f=(4.8*Q) where Q=L/Min
Accuracy: ±3%
Connector type: G1
Low temperature test : After placing at -20 ° C for 72h, place at room
temperature for 1h, the accuracy is within ± 5% of the first measured value.
High temperature test : After standing at 85 ° C for 72 h, place at room temperature for 1h, the accuracy is within ± 3% of the first measured value.
