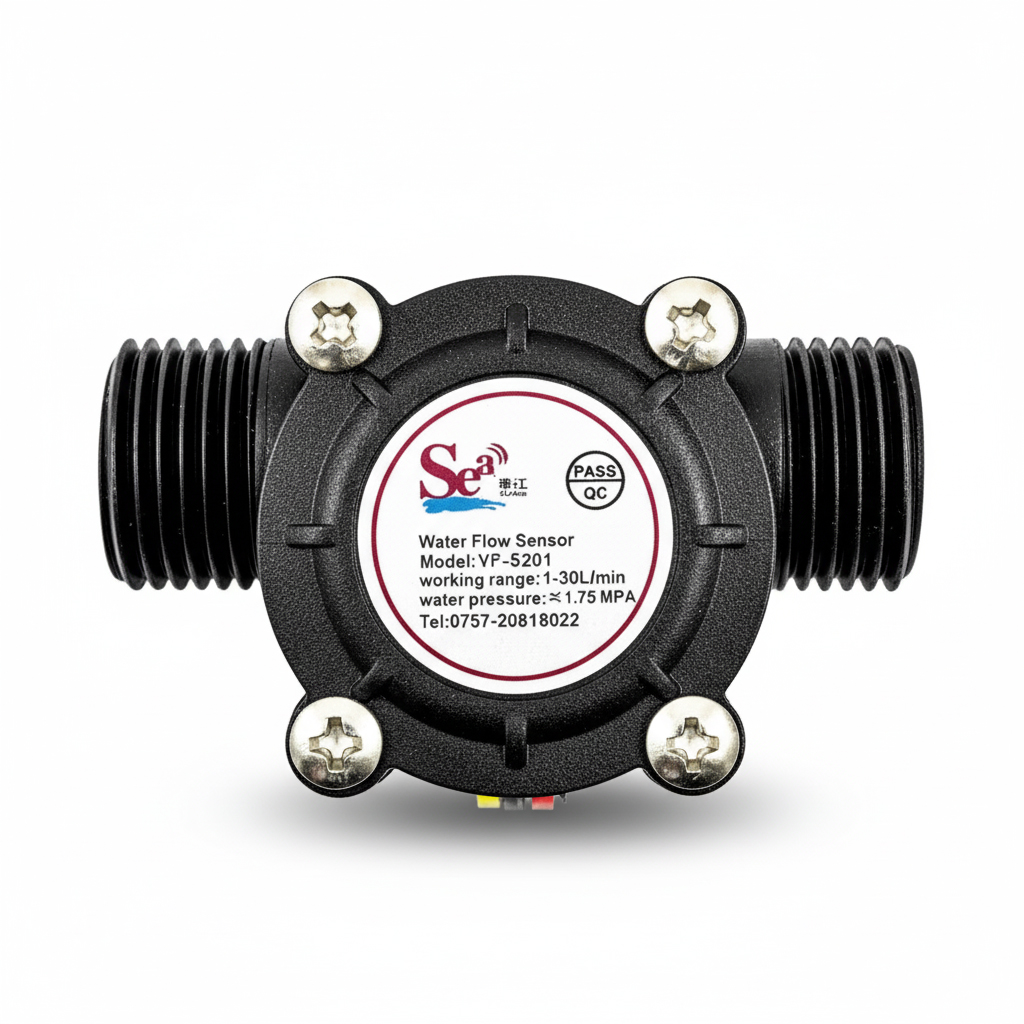

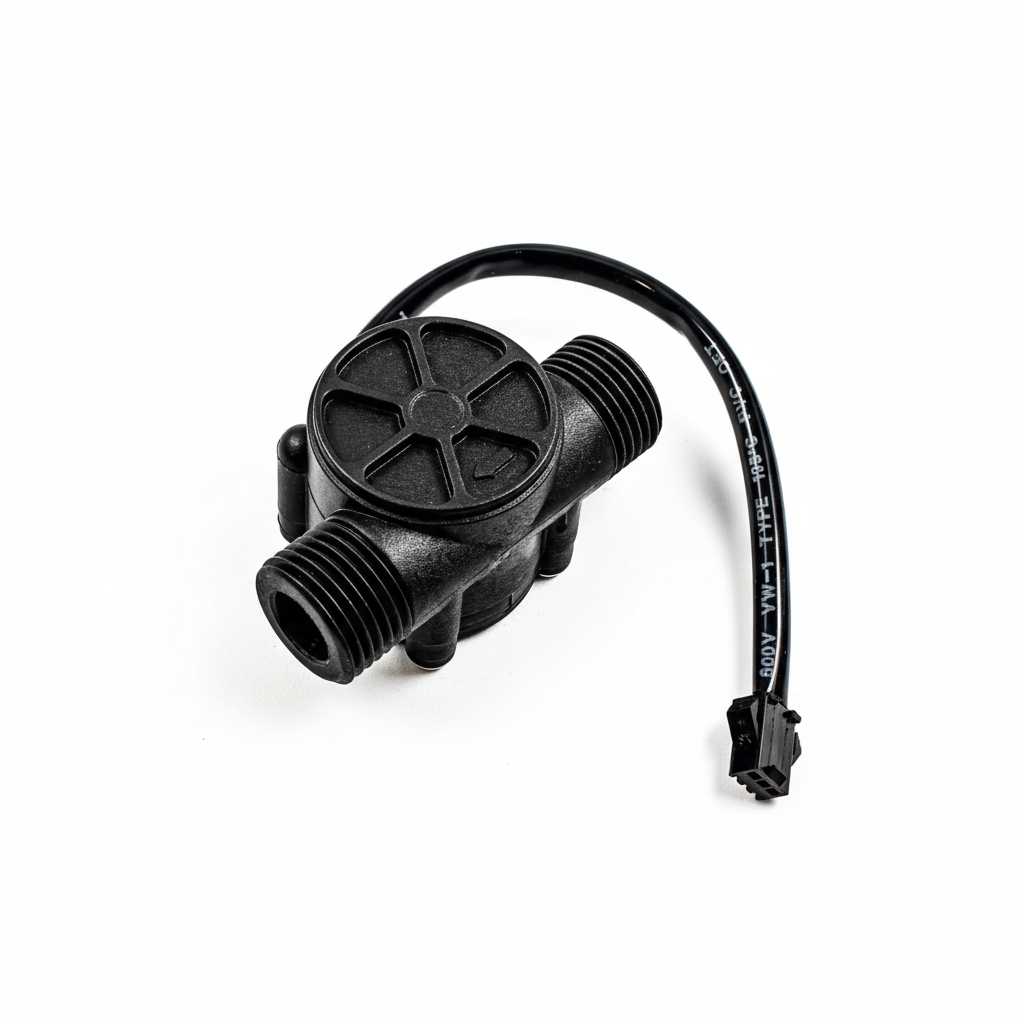

0.5" Water flow sensor
₹
Availability: In Stock
Key Features:
Compact, Easy to Install
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant
Specifications:
Working Voltage: DC 4.5V~24V
Normal Voltage: DC 5V~18V
Max. Working Current: 15mA (DC 5V)
Load capacity: ≤ 10 mA (DC 5V)
Flow Rate Range: 1~30L/min
Load Capacity: ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature: ≤120℃
Operating Humidity: 35%～90%RH
Allowing Pressure: ≤1.75MPa
Storage Temperature: -25～+ 80℃
Storage Humidity: 25%～95%RH
Electric strength 1250V/min
Insulation resistance ≥ 100MΩ
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
Normal Voltage: DC 5V~18V
Max. Working Current: 15mA (DC 5V)
Load capacity: ≤ 10 mA (DC 5V)
Flow Rate Range: 1~30L/min
Load Capacity: ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature: ≤120℃
Operating Humidity: 35%～90%RH
Allowing Pressure: ≤1.75MPa
Storage Temperature: -25～+ 80℃
Storage Humidity: 25%～95%RH
Electric strength 1250V/min
Insulation resistance ≥ 100MΩ
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
